What's Included

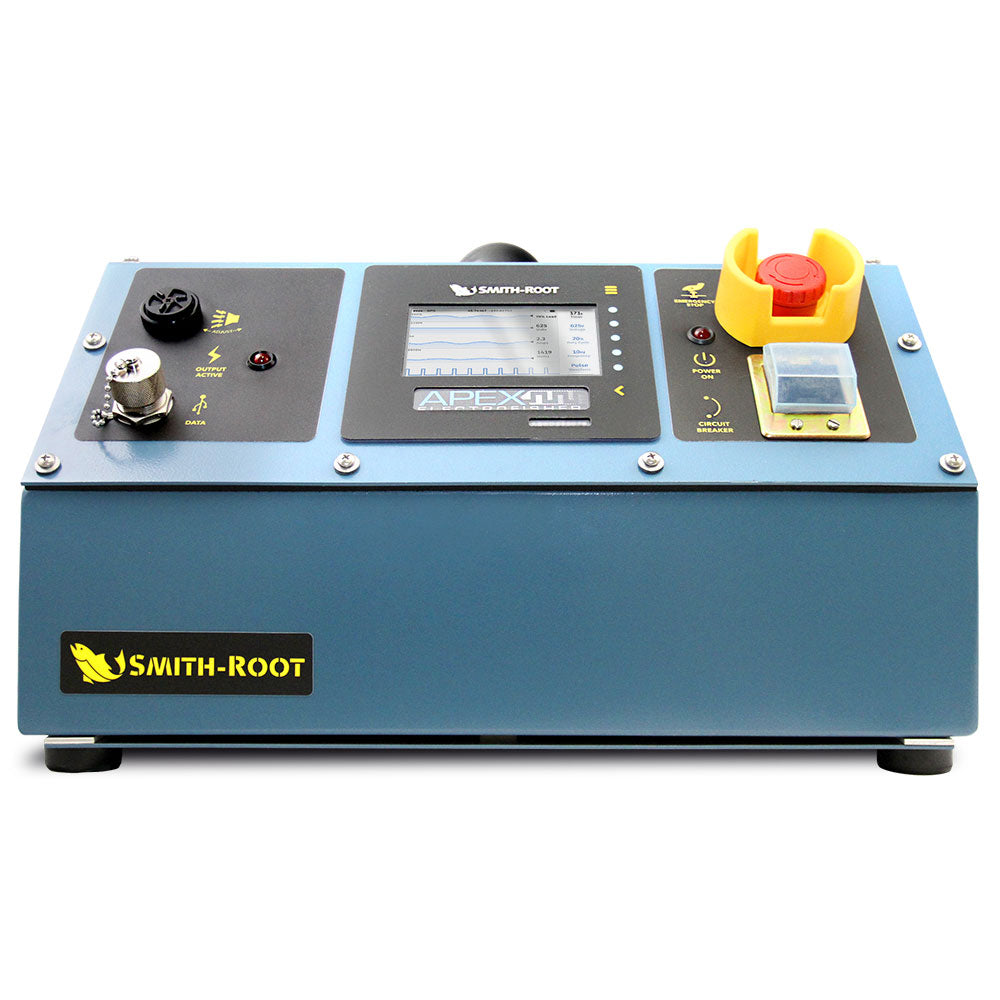

- Apex Electrofisher Control Box
- Cathode cable (15 foot)
- Anode cable (15 foot)
- Single foot switch with cable (15 foot)
- Input power cable (10 foot)
- Instruction manual
Description
With more than 50 years of building electrofishers under our belt, we pulled out all the stops when designing the Apex. Dual Channel Outputs, Widest Electrical Output Ranges, Timer Alarm, Help Tutorials, Diagnostic Mode, Animated Waveform, Trend Graphs, GPS Coordinates, Data Recording, Data Download, User Performed Software Upload, and more.
| Output Power | 7,200W continuous AC, 24,000W peak |
|---|---|
| Output Voltage | 0 to 1,200VDC in 1V steps 0 to 240VAC RMS in 1V steps, 339V peak |
| Output Frequency | 1 to 1,000Hz in 1Hz steps |
| Duty Cycle | 0% to 100% in 1% steps |
| Output Current | 80A peak max on low range 40A peak max on mid range 20A peak max on high range 40A peak max in AC mode 24A continuous at 250V |
| Output Waveforms | DC, Pulsed DC, Burst of Pulses DC, AC |
| Waveform Storage | Save voltage, frequency, duty cycle, and pulse type for 12 different waveforms |
| Overload Protection | Excessive peak current and average current will shutdown the unit before damage can occur |
| Output Indicator | udio tone, Flashing red light, Dynamically plotted output waveform, Charted displays for output voltage, current, and power. Diagnostic screen shows all inputs and outputs, including peaks and averages |
| Metering | Peak and average output current, Peak and average output voltage, Peak and average output power, Timer and alarm, Waveform settings, internal temperature, Error messages, Fault conditions |
| Output On Timer | 0 to 999,999 seconds, resettable via menu |
| User Configurable Alert | 1 to 3,600 seconds with alert at end of count |
| Environmental Requirements | Operational altitude: -400 to 3000 meters Relative humidity: 10% to 90% noncondensing Operating temperature: 0° to 40° C Storage temperature: -15° to 50° C |
| Safety Devices | Output indicator Foot switch Emergency stop switch |
| Data Logging | Output Peak and Average Voltage Current Power Waveform GPS position Time stamp in YY/MM/DD HH:MM:SS format Temperature Elevation Timer |
| Data Port | USB 2.0 supports download of log file and upload of software and firmware updates |
| Display | Color, sunlight readable 5 inch display |
| Input Power | 240VAC 50/60hz 30A max |
| Generator | 8,000W continuous for max. output 240V at 33A 50/60Hz Floating neutral |
| Size and Weight | Height: 12.5 in (30.48 cm) Width: 20.5 in (52.07 cm) Depth: 17.5 in (44.45 cm) Weight: 53 lb. (24.04 kg) |
