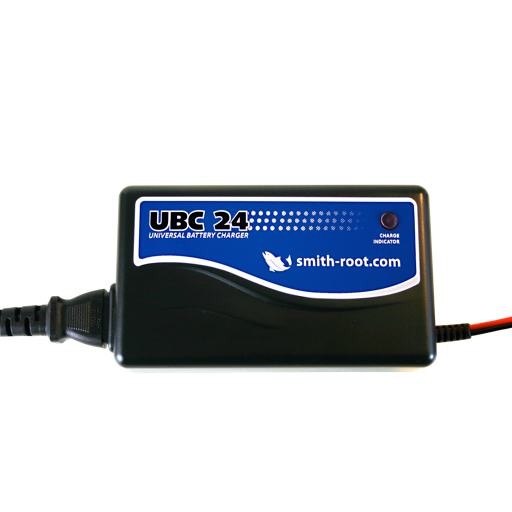

The UBC-24 Battery Charger is a 24 volt battery charger designed to charge the batteries used in the Apex, LR-24, and LR-20 Series Backpack Electrofishers. The UBC-24 features a fully automatic, three stage charge sequence with an electronically timed routine and a desulfation mode.
|Input Rating||Nominal 90 to 264VAC / 47 to 63Hz|
|Maximum Output Power||60W|
|Timer||2 hours ±30%|
|Input Connection||3 pin IEC 320|
|Output Connection||Battery clips|
|Size and Weight||Height: 1.73 in (44 mm)
Width: 3.15 in (80 mm)
Depth: 5.31 in (135 mm)
Weight: 0.77 lb. (350 g)
Specifications subject to change without notice.
