LR-20B BACKPACK ELECTROFISHER

Name: LR-20B BACKPACK ELECTROFISHER
Brand: Smith-Root
SKU: 10820
Availability: InStock

SKU: 10820

The LR-20B electrofisher features 400W of power in a familiar, easy to use design. Per Watt, the most affordable electrofisher on the market. This combo package includes the electrofisher, battery and charger, electrode pole, electrode ring, and cathode.

Price:

Contact for price

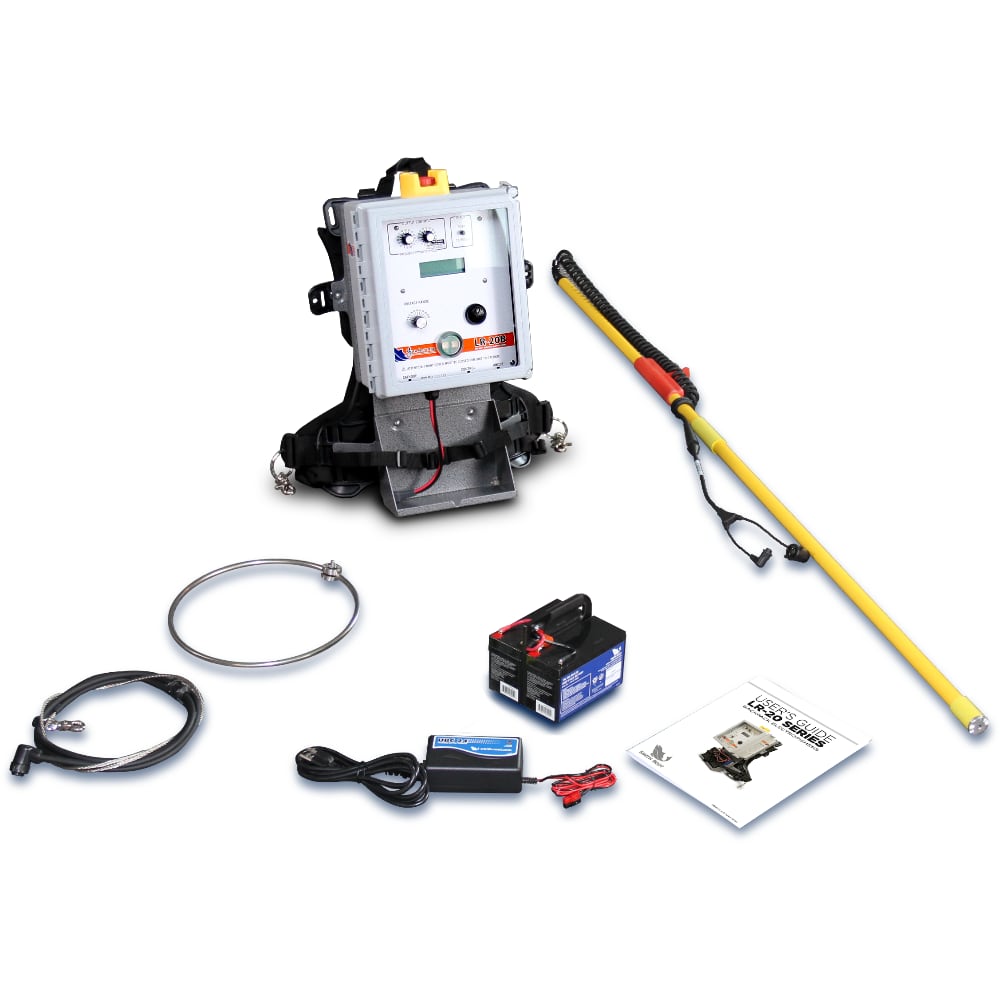

What's Included

LR-20B Backpack Electrofisher
Adjustable Shoulder Harness
6 ft. 2-Piece Electrode Pole
11 in. Adjustable Stainless-steel Electrode Ring
Rat-tail Cathode
(1) 24V 11.1Ah Lithium Battery or (1) 24V 7Ah Battery
UBC-24 Battery Charger
Voucher for Electrofishing Principles and Safety Certification Course ($500 value)

The LR-20B Electrofisher combines 2,600 watts of peak output power with the simplicity of our classic Model 12 Electrofisher, while using the standard accessories of the LR-24 Electrofisher. The LR-20B offers the same rugged features and easy-to-use controls of the original LR-20, with increased output power.

Technical Specifications

Output Power	400W continuous, 39,600W peak
Output Voltage	50 to 990V in 11 steps (50 to 400V in 50V steps, 500V, 700V, 990V)
Output Frequency	10 to 120Hz in 16 steps (10 to 50Hz in 5Hz steps, 50 to 120Hz in 10Hz steps)
Duty Cycle	5 to 50% in 5% steps, 60 to 80% in 10% steps, Gated Burst 2 pulse, Gated Burst 3 pulse, DC
Overload Protection	Automatic electronic and 40A safety fuse, High output current, Output voltage out of regulation, Over temperature
Safety Features	Emergency shut off switch, Output active super-high brightness red LED, Output active audio alarm, Output off immersion sensor, Output off tilt sensor, High output current protection, Pole mounted output control switch, Electrode out-of-water shut down sensor, Non-conductive lightweight pack frame, Quick release harness
Timer	6 digit computer controlled seconds counter
Metering	Mean current, Peak output voltage, Average output power, Battery voltage, Battery current, Battery fuel gauge, Timer
Battery	Choice of 24V lithium or lead-acid batteries
Size and Weight	Height: 21 in. Width: 15 in. Depth: 9 in. Weight: 17.8 lb. (8.07 kg) without battery or accessories
